A Simulated Wind Power Plant as MQTT Publisher

In the following 8 minute video you can see how to set up a Streamsheet that simulates a wind mill power plant and and publishes its data in real-time to a MQTT broker (learn more how to enable the MQTT connection).

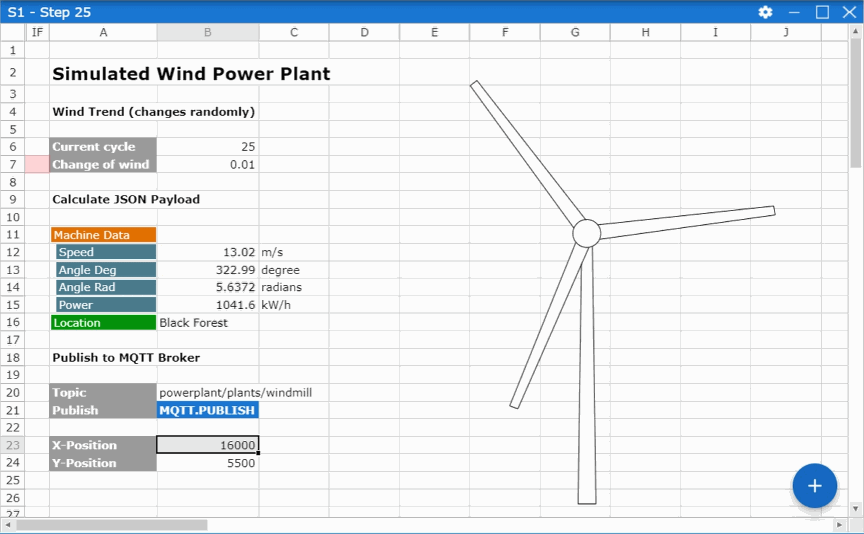

Screenshot of a simulated wind power plant on Streamsheets
Streamsheet with random number functions and a animated wind mill publishing data via MQTT

There is not input stream for this Streamsheet. Instead, the Streamsheet uses the continuous calculation mode and random number functions to simulate varying wind speeds and gusts.

In the second half of this video, it is shown how you can animate the windmill by dynamically linking drawing objects with the output cells of the Streamsheet.

A simulated Wind Mill Power Plant as MQTT Publisher

In a later post, I will show how you can use the MQTT stream of this Streamsheet as an input source for a digital twin and an energy dashboard, both implemented via Streamsheets.

In addition, I would recommend learning how to set up an MQTT server in Python with an option to see a ready Python environment in place.
